◆ Module introduction

It can collect modules and images through embedded way; analyze the collected car number image and get the information about the image. It can solve the problem that AEI can’t identify the car number because of the label failure or missing of the locomotive. It’s suitable for different types of trains like locomotive, motor train units etc.

◆ Module function

(1) Automatic identification of train number image and analyze the information of the number;

(2) Related information can be sent to management center through wireless or wire transmission; the related information will be displayed to mangers of all levels and scheduling command staff with graphical interface;

(3) It can exchange data with other information system and comprehensive transport system; provide the information of train’s passing by time, steward, responsible train, retention period etc.; provide data base for train statistics, application management, steward over work analysis and scheduling management.

◆ Application case

1. This module is used to identify the train number:

Diagram of device on-site installation

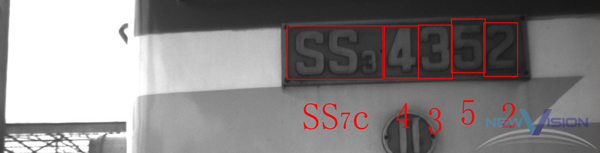

 Results of automatic train number identification No.1

 Results of automatic train number identification No.2

 Results of automatic train number identification No.3

 Results of automatic train number identification No.4

 Results of automatic train number identification No.5

 Results of automatic train number identification No.6

Results of automatic train number identification No.7

Results of automatic train number identification No.8

Results of automatic train number identification No.9

2. This module is used to identify the number of motor train:

 Automatic identification of number of motor train

3. This module is used to identify ordinary passenger train:

Result of identification of ordinary passenger train
